DBTDL As A Catalyst In Polyurethane & Silicone (RTV) Curing

When a silicone sealant sets into a rubbery bead within minutes of being applied to a joint, or when a two-part polyurethane foam rises and solidifies into a firm cushion right before your eyes, something chemically remarkable is taking place.

Neither of these transformations happens on its own. Both are driven by a catalyst. And for decades, the catalyst most consistently chosen for this job, across both polyurethane and silicone RTV chemistry, has been Dibutyl Tin Dilaurate, known in the industry by the abbreviations DBTDL or DBTL.

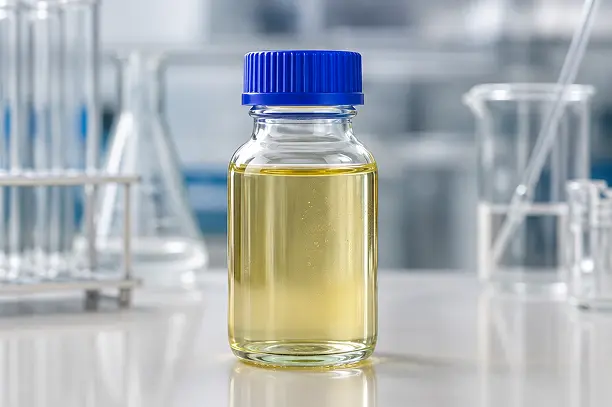

Dibutyl Tin Dilaurate is an organotin compound with the molecular formula (C₄H₉)₂Sn(OOCC₁₁H₂₃)₂. Its CAS number is 77-58-7. In its physical form, it appears as a clear to pale yellow, viscous liquid with a faint, fatty acid-like odor. It is soluble in most common organic solvents, including acetone, methanol, and toluene, but practically insoluble in water.

Its molecular weight is approximately 631.56 g/mol, and it is encountered commercially under trade names such as TIB KAT 218, Metatin Catalyst 712E, and Fomrez SUL-4. These properties make it highly compatible with both silicone polymer matrices and polyurethane resin systems, where a homogeneous, solvent-friendly catalyst is required.

To understand why DBTDL matters across two very different polymer chemistries, it helps to start with what it does. Three defining characteristics set it apart from most other catalysts used in curing chemistry:

• It is a highly efficient catalyst for both urethane-forming reactions (isocyanate–polyol) in polyurethanes and condensation reactions (silanol/alkoxy–moisture) in RTV silicones, accelerating crosslinking at, or close to, ambient temperature.
• It is versatile across formulation types — one-component (RTV-1) and two-component (RTV-2) silicone systems, two-component polyurethane systems, and moisture-curing coatings based on silane- or isocyanate-terminated polymers.
• It has a long, proven track record across construction, automotive, electronics, furniture, and industrial manufacturing applications, making it a reliable benchmark whenever new formulation development work begins.

What Polyurethane And RTV Silicone Curing Actually Involve And Why Do Both Need A Catalyst?

Polyurethane and silicone RTV systems cure through entirely different chemical pathways, yet both share the same underlying limitation: left alone, their reactive groups are too slow, and too inconsistent, to build a usable solid material within a practical timeframe.

In polyurethanes, curing occurs when a polyol (containing -OH hydroxyl groups) reacts with an isocyanate (containing -NCO groups) to form a urethane linkage — the structural backbone of PU foams, coatings, adhesives, and elastomers.

Left uncatalyzed, this reaction proceeds slowly and unevenly, especially at room temperature, resulting in tacky surfaces, weak cross-link density, and inconsistent batch-to-batch quality.

In RTV silicones, curing occurs through condensation — silanol (Si-OH) or alkoxy (Si-OR) groups on the silicone polymer chain react with atmospheric moisture, releasing a small byproduct molecule (such as an alcohol) while forming new Si-O-Si linkages.

Room Temperature Vulcanization means this happens without heat, driven purely by ambient humidity. But without catalytic assistance, this condensation reaction is inherently slow and could take impractically long to build adequate crosslink density.

DBTDL solves both problems, though through different mechanisms depending on the system:

1) In Polyurethanes, DBTDL temporarily coordinates with the isocyanate group, activating it toward faster, more efficient reaction with the polyol’s hydroxyl group — favoring what formulators call the “gelling reaction,” which builds the solid polymer network

2) In RTV Silicones, DBTDL accelerates the hydrolysis and condensation steps between reactive silyl groups and moisture, following a two-stage sequence:

• Moisture-Activated Surface Cure: Ambient humidity first reacts with the tin compound at the exposed surface, rapidly forming a protective “skin.” Getting this skin-over time right is critical: too fast, and the material cannot be tooled or leveled; too slow, and the uncured surface risks contamination

• Bulk Crosslinking Progression: As moisture diffuses inward, DBTDL continues catalyzing condensation through the depth of the material, determining the final crosslink density, tensile strength, elongation at break, and adhesion performance

This dual-mode behavior, one mechanism tuned for isocyanate-polyol chemistry, another for moisture-driven silicone condensation, is precisely why DBTDL remains relevant across such a broad span of curing chemistries.

The Role Of DBTDL In Moisture-Cure Coatings

Beyond conventional PU foams and silicone sealants, DBTDL plays an equally important role in moisture-curing coatings, a class of protective coatings that cure not through heat or UV exposure, but through reaction with atmospheric moisture.

These systems are increasingly important in construction, infrastructure protection, and industrial maintenance. The main moisture-cure coating types where DBTDL is used include:

• Silane-Terminated Polyurethane (STPU) Coatings, used in construction waterproofing, roofing membranes, and below-grade waterproofing applications.
• Silane-Modified Polymer (SMP) Coatings, increasingly common as next-generation sealant bases in automotive and industrial applications, valued for their low-isocyanate or isocyanate-free formulation options.
• Alkoxy-Functional Silicone Coatings, applied to electronics, automotive components, and industrial equipment for thermal stability and environmental resistance.
• One-Component Moisture-Cure Polyurethane Coatings, widely used in floor coatings, wood finishing, and heavy-duty industrial maintenance.

In all of these systems, DBTDL functions as a condensation-cure catalyst, accelerating both the hydrolysis step and the condensation step that follows, so the coating cures at a controlled, predictable rate under ambient conditions.

Typical use levels range from 0.01% to 0.5% by weight of the total formulation, depending on required cure speed, polymer reactivity, and expected humidity at the time of application, a low effective dose that keeps cost impact on the overall formulation minimal.

What Are The Key Applications Across Industries?

DBTDL’s catalytic performance in polyurethane and silicone RTV chemistry has made it a formulation staple across a wide range of industrial end-uses. The industries and specific applications that rely on it most heavily include:

1) Construction & Civil Engineering — DBTDL-catalyzed silicone sealants and PU foams are used for glazing, curtain wall sealing, expansion joints, insulation panels, and structural bonding. Rapid ambient cure, high elasticity for movement accommodation, and resistance to UV and temperature cycling make them a standard choice for building envelopes and facades worldwide.

2) Automotive Manufacturing — RTV silicone sealants catalyzed with DBTDL are used as formed-in-place gaskets (FIPG), engine sealing compounds, and bonding agents, while DBTDL-catalyzed polyurethanes appear in seating foam, wheels, and vibration-damping components. High-temperature resistance up to 200°C or beyond, alongside rapid cure, makes these compounds essential in powertrain and interior assembly.

3) Electronics & Electrical Engineering — DBTDL-cured silicone compounds are applied as potting compounds, conformal coatings, and encapsulants for printed circuit boards, sensors, and high-voltage components. Their outstanding electrical insulation properties and ability to cure at room temperature, without exposing heat-sensitive components to damaging temperatures, are critical performance requirements.

4) Industrial Maintenance & Protective Coatings — Moisture-cure silicone, SMP, and polyurethane coatings catalyzed with DBTDL are applied to bridges, pipelines, offshore structures, and industrial plant equipment, providing durable, long-service-life protection against corrosion, UV degradation, and chemical exposure.

5) Furniture, Foam & Consumer Goods — DBTDL is widely used in flexible and rigid polyurethane foam manufacturing for mattresses, cushions, and insulation panels, where it helps control gel time, foam rise, and final cross-link density for consistent product quality.

Handling, Safety, And Regulatory Considerations

DBTDL is a highly effective catalyst, but it carries a clearly defined hazard profile that every formulator, handler, and compliance professional must understand.

• DBTDL is classified as highly flammable and must be stored away from heat, sparks, and open flame in well-ventilated, cool conditions.
• It is listed under Reproductive Toxicity Category 1B (Repr. 1B) under the EU CLP Regulation, meaning dibutyltin compounds are presumed to exhibit toxic effects on reproduction in humans based on animal evidence.
• Formulations containing greater than 0.5% by weight of dibutyltin compounds must carry the Repr. 1B hazard label in Europe — a threshold that directly affects formulation design decisions.
• It is practically insoluble in water, reducing aquatic contamination risk under normal handling, though any spill must be contained and disposed of as hazardous chemical waste in compliance with local regulations.
• Personal protective equipment, such as nitrile gloves, chemical splash goggles, and adequate ventilation, is required during handling to prevent skin, eye, and inhalation exposure.

Regulatory Status Under EU REACH: Organotin compounds, including DBTDL, have faced growing regulatory scrutiny for years under the EU REACH framework.

Environmental agencies have signaled that dibutyltin-containing formulations may face further use restrictions in consumer applications, and the directional trend in REACH Annex XIV (Authorization) and Annex XVII (Restriction) is clearly toward tightening control of organotin compounds, particularly in products accessible to the general public.

Formulators in regulated markets are strongly advised to monitor ECHA updates closely and to proactively evaluate tin-free alternatives in their development pipelines.

Looking for a reliable source of high-quality Dibutyl Tin Dilaurate for your Polyurethane & Silicone (RTV) Curing? Explore SV Plastochem’s Dibutyl Tin Dilaurate and connect with our team for technical support and pricing.

Conclusion: Irreplaceable Today, Evolving Tomorrow

Dibutyl Tin Dilaurate has earned its central role in polyurethane and RTV silicone curing chemistry through decades of reliable, consistent performance. It cures efficiently, works at or near room temperature without significant energy input, and is compatible with one-component and two-component systems across both polymer families.

It delivers all of this at very low loading levels, typically well below 0.5% in finished formulations, making it economically as well as technically attractive. At the same time, the regulatory direction, particularly in Europe, is clear and moving in one direction.

Organotin compounds face a future of increasing restriction, and the industry is investing meaningfully in tin-free alternatives. The most technically promising successors under development and adoption include:

• Titanium(IV) complexes, effective in alkoxy-curing RTV systems, offering broadly comparable cure kinetics to DBTDL in many standard formulations, with lower toxicological concern
• Zinc carboxylate compounds (such as zinc neodecanoate), proven in SMP and silane-terminated polymer systems, increasingly competitive in construction sealant applications where regulatory pressure is highest
• Bismuth-based catalysts, emerging in moisture-cure polyurethane and hybrid polymer coatings as a practical non-tin, lower-toxicity alternative, though still limited in the breadth of systems they can address

For now, DBTDL remains the benchmark — the catalyst against which all alternatives are measured, and the one that still delivers the most consistent, well-understood performance across the widest range of polyurethane, silicone, and moisture-cure formulations.

Understanding exactly how it works, where it is used, and what regulatory pressures surround it is not just useful chemistry knowledge; it is essential knowledge for anyone formulating, specifying, or qualifying polyurethane and silicone products in today’s market.
